Description

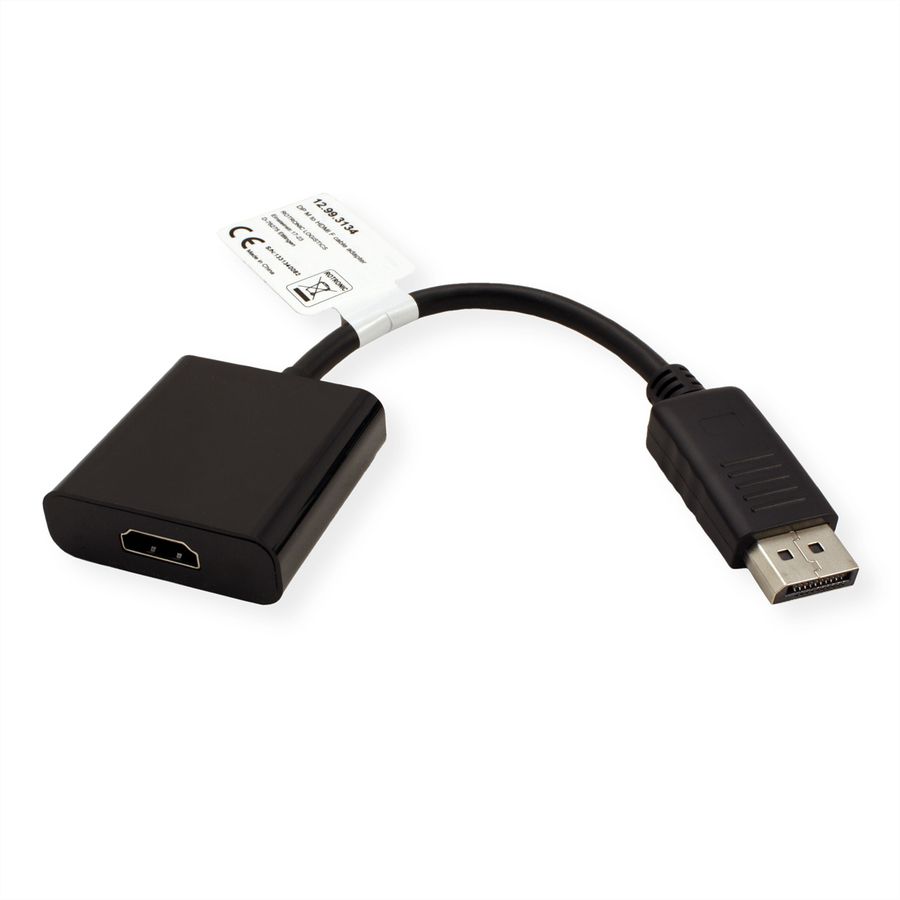

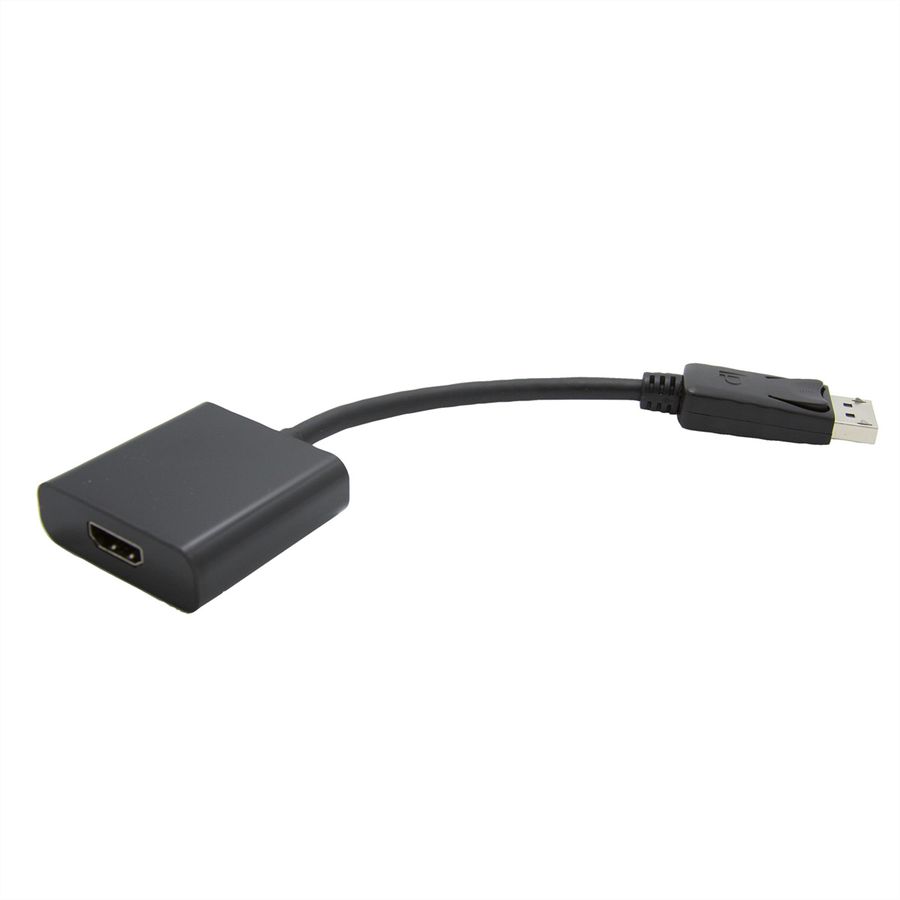

DisplayPort to HDMI cable adapter for connecting a graphics card with DP to a monitor with HDMI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

• If you want to connect a graphic card with DisplayPort Female to a monitor by using a HDMI cable, you need this DisplayPort to HDMI adapter
• Connectors: DisplayPort Male, HDMI Female
• Remark: The DisplayPort-HDMI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer	VALUE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-HDMI Adapter
Colour	black
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	DisplayPort Male
Side 2 connection (Peripherals)	HDMI Female
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Dimensions (HxWxD)	14 x 44 x 44 mm
Height	14 mm
Width	44 mm
Depth	44 mm
Weight	35.6 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	40 mm
Depth of packaging (single piece)	180 mm
Package weight (single piece)	0.039 kg
