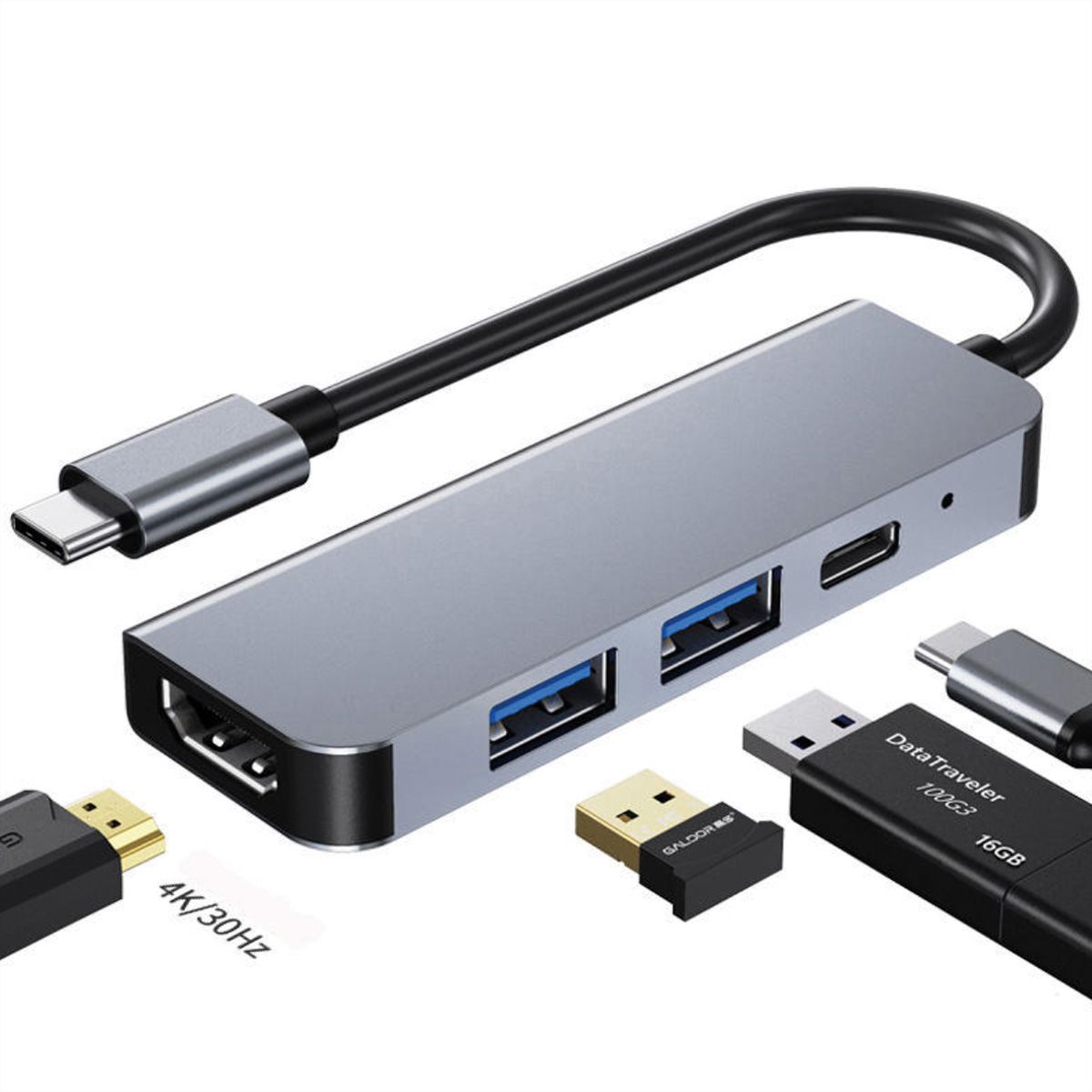

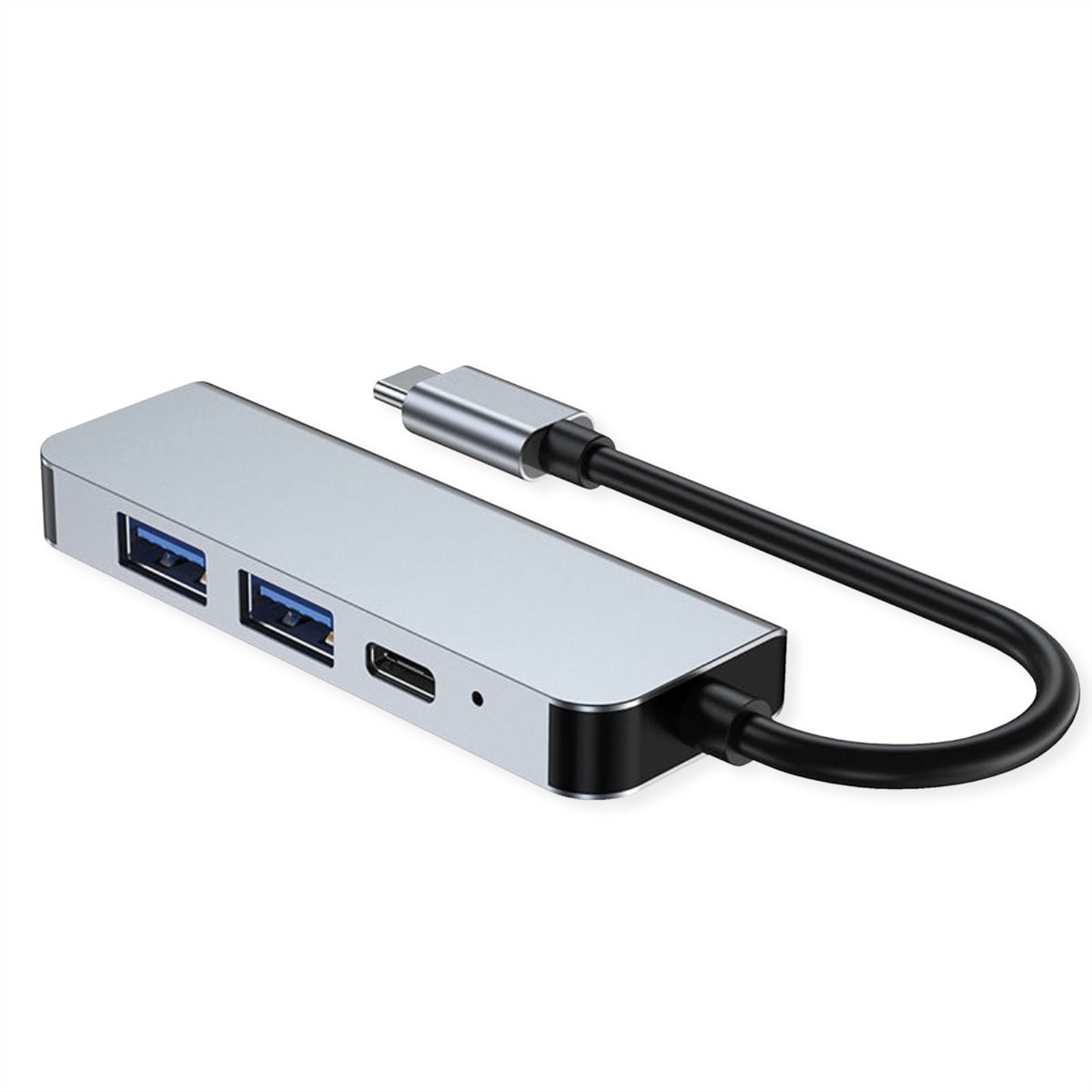

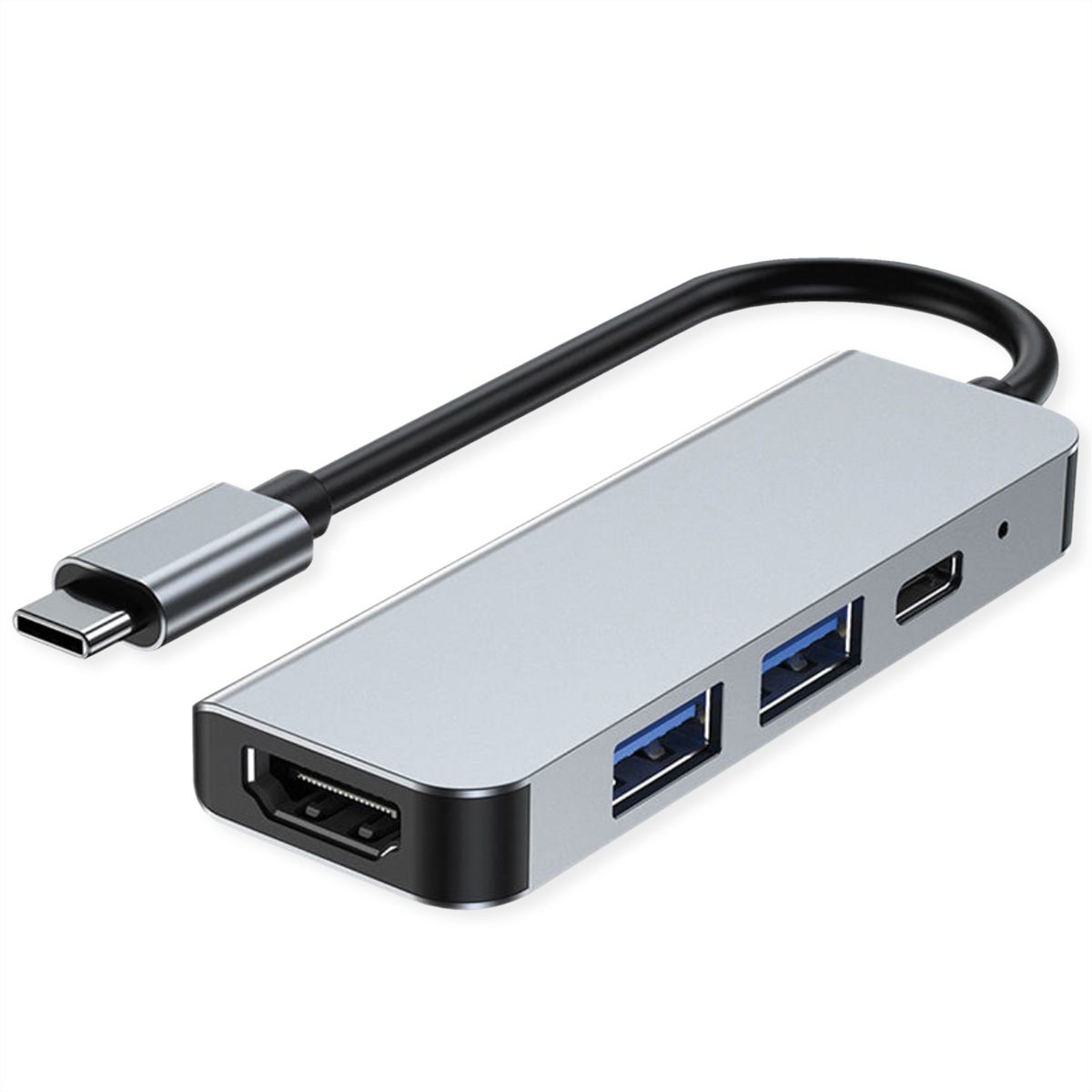

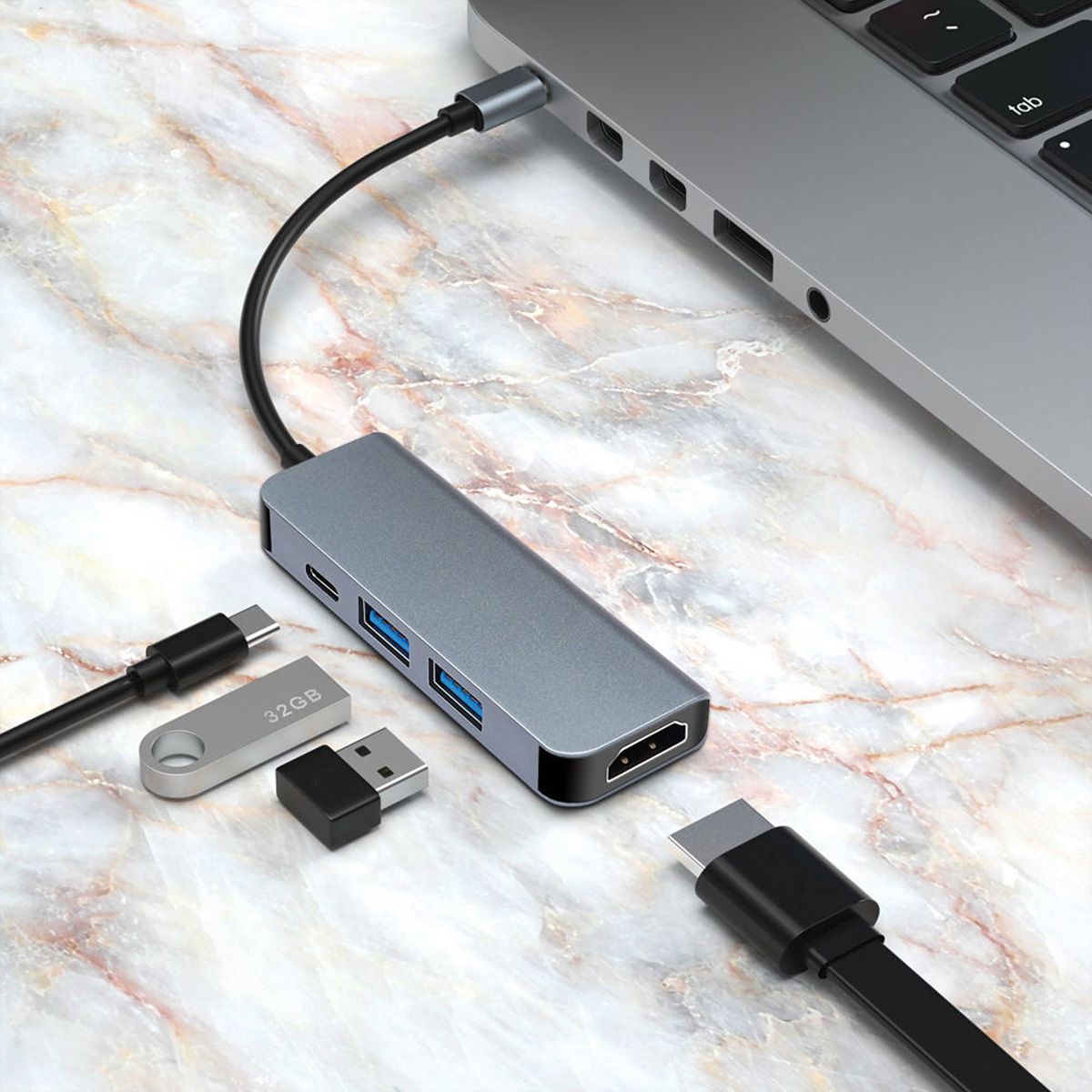

VALUE Dockingstation Type C, 1x HDMI 4K30, 1x USB 3.2 Gen1 Type A, 1x USB 2.0 Type A, 1x Type C PD (Power Delivery)

Item no. 12.99.1146-10 Brand / Manufacturer VALUE Manuf. no. 12.99.1146 EAN 7630049660809 Package weight 0.1 kg
VALUE
New products

Please log in to be able to use the shopping cart and then complete orders.

Log in
Available
Ordered until 3 pm - usually dispatched on the same day
Download PDF

Description

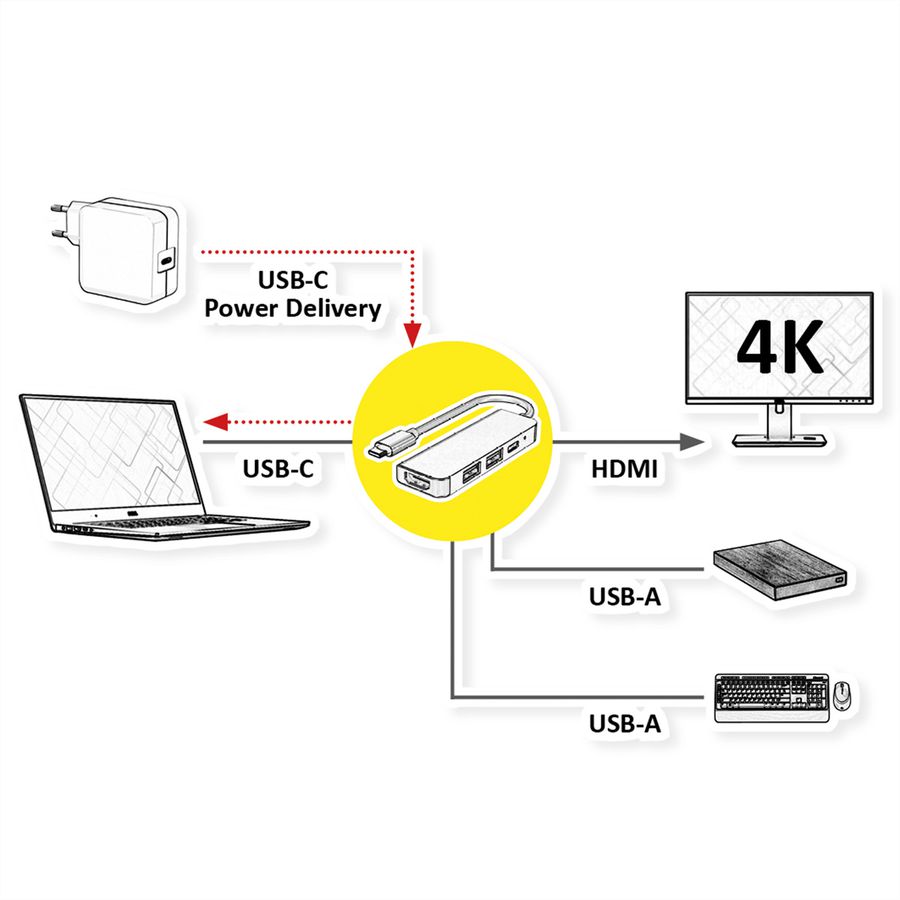

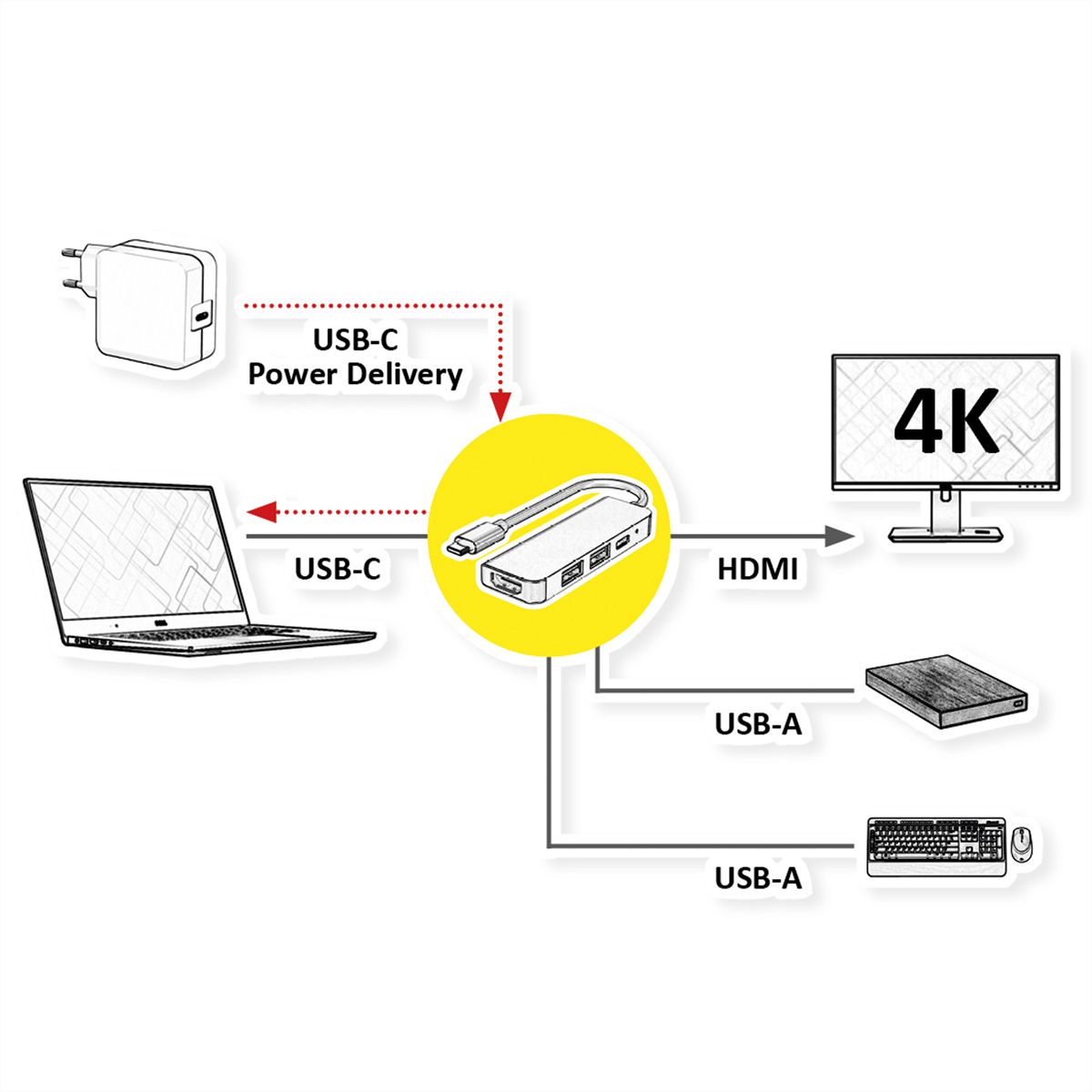

Connect your Macbook, Ultrabook, Notebook/Laptop or PC with USB Type C interface to a HDMI display/monitor or projector (max. resolution 3840x2160 @30Hz). Also, you can connect USB devices to the additional USB-A Ports (1x USB 3.2 Gen 1 / USB 3.0 and 1x USB 2.0), while charging your device simultaneously over the Type-C PD (Power Delivery) port!

  • Connect your device with USB Type C port to a HDMI display/monitor or projector
  • 1x HDMI port with a resolution of up to 3840x2160 @30Hz
  • 1x USB 3.2 Gen 1 / USB 3.0 (5 Gbps)
  • 1x USB 2.0 (480 Mbps)
  • USB Type-C PD (Power Delivery) up to 100 Watts
  • Portable design
  • No power adapter required

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer
VALUE
Product group
Adapters, Terminators, Converters
Product type
Notebook-Docking-Station
Colour
grey
Length
0.1 m
Scope of delivery
Docking Station
Max. resolution
3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)
USB Type C
Side 2 connection (Peripherals)
1x HDMI 4K30, 1x USB 3.2 Gen1 Type A, 1x USB 2.0 Type A, 1x Type C PD (Power Delivery)
Side 1 Connector Type
USB Type C (USB-C)
Side 1 Connector Gender
Male
Side 2 Connector Type
  • HDMI Type A
  • USB 3 Type A
  • USB 2.0 Type A
  • USB Type C PD (Power Delivery)
Side 2 Connector Gender
Female
Area of application
External
Dimensions (HxWxD)
10 x 27 x 80 mm
Technical particularity
Power Delivery Function (100W)
Height
10 mm
Width
27 mm
Depth
80 mm
Weight
29 g
Height of packaging (single piece)
20 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.1 kg

Downloads

Product data sheet - English (57.4 KB)
